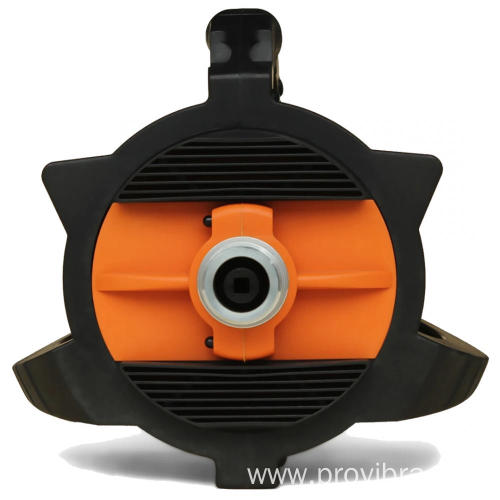

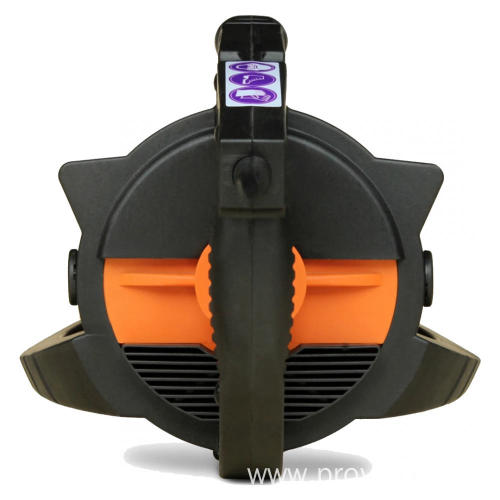

portable eccentric concrete vibrator hose

  • $145
    20-99
    Piece/Pieces
  • $125
    ≥100
    Piece/Pieces
Model:
Share:
  • Product Description
Overview
Product Attributes

Model No.X-MAN

BrandPROVIB

Applicable IndustryBuilding Material Shops, Machinery Repair Shops, Home Use, Construction Works, Other

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, None

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeNew Product 2020

Core Component Warranty Period1 Year

Core ComponentsMotor

Old And NewNew

Place Of OriginChina

Types OfInternal

Drive WayElectric Vibrator

Warranty Period1 Year

Unique Selling PointLong Lifetime

NameConcrete Vibrator

Coloryellow,blue,etc

Couplingscrew,pin type

Supply Ability & Additional Information

Packagingcarton box, 1pcs/ctn

Productivity1000PCS ONE MONTH

TransportationOcean,Land,Air,Express

Place of OriginCHINA

Supply Ability1000sets one month

CertificateCE

HS Code8467299000

PortNingbo ,Shanghai,Qindao

Payment TypeL/C,T/T,Western Union

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:

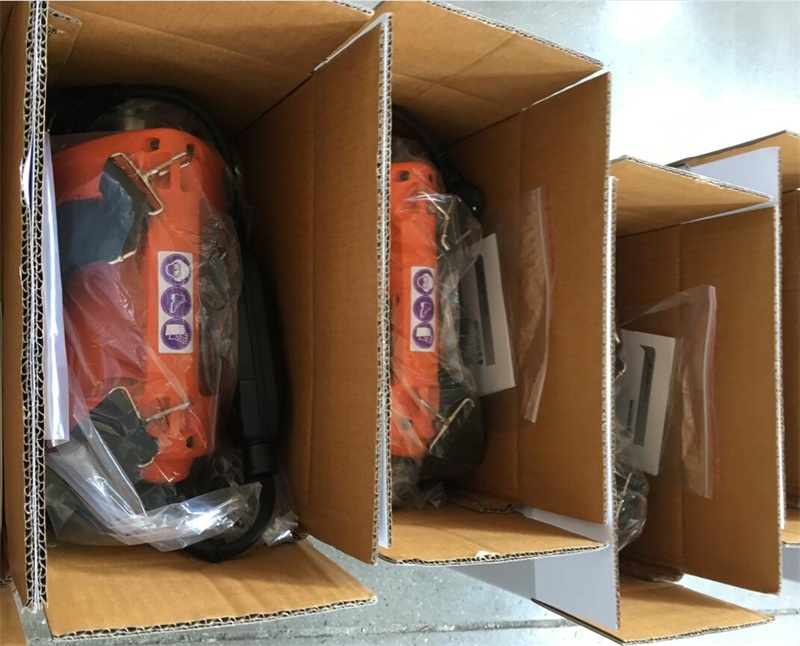

carton box, 1pcs/ctn
Picture Example:

Product Description

Portable Eccentric Concrete Vibrator hose,is an universal motor for driving an eccentric system of Concrete Vibrator poker. With strong housing, qualified rotor&stator,high level of carbon brush,it provides both superior dynamic to the flexible shaft&poker,and also reliable performance and long lifetime.

The eccentric poker is made by qualified rubber hose with vulcanization protection and high speed inner core,that provides both flexibility and resistance to wear.The outer casing rubber hose is with abrasive rubber,double layer of meshing wire,and high quality spring steel as the lining.The inner core is made by high carbon steel wire that is suitable for high speed working condition.

Features

1- Powerful and reliable motor
2- Strong and waterproofed housing with integrated filter
3- Well protected carbon brush but easy change,convenient for maintenance
4- Low noise and soft vibration on flexible shaft
5- Easy assembling and disassembling for coupling between motor and shaft,no any tool needed.
6- Interchangeable poker head to all flexible shaft
7- Variety size of poker head could be suitable for different working condition

8- High frequency of vibration on poker head

Technical Data Of Motor

Modle Voltage Power Frequency NO-Load Speed Weight Packing Size
X-MAN 230V/115V 2.3KW( 3hp) 50/60HZ 17,500RPM 6.3KG 475X265X278mm

Technical Data Of Poker

Model diameter of vibrating head diameter of rubber hose diameter of flexible shaft length vibrating frequency weight 4M
EP40 40mm 27mm 9mm 1-6m 200HZ 13KG
EP48 48mm 27mm 9mm 1-6m 200HZ 14KG
EP58 58mm 27mm 9mm 1-6m 200HZ 16KG

Product Photo

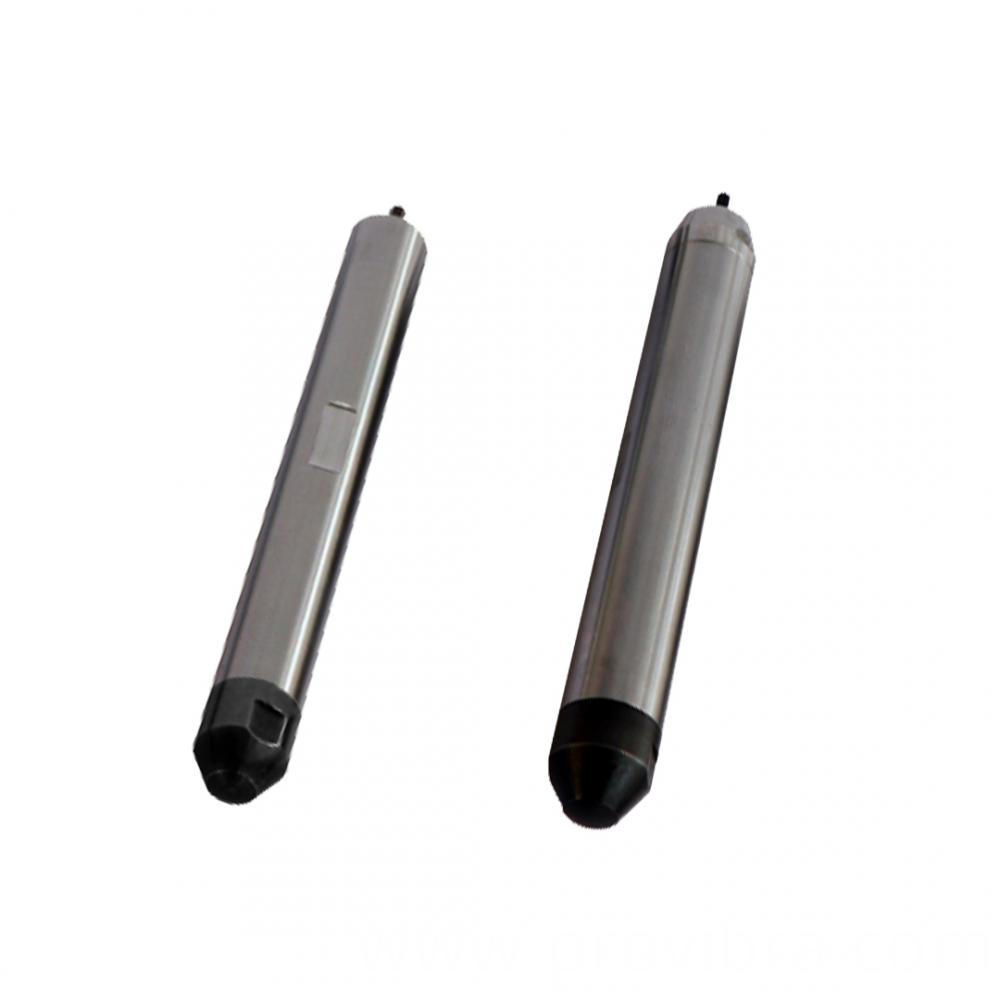

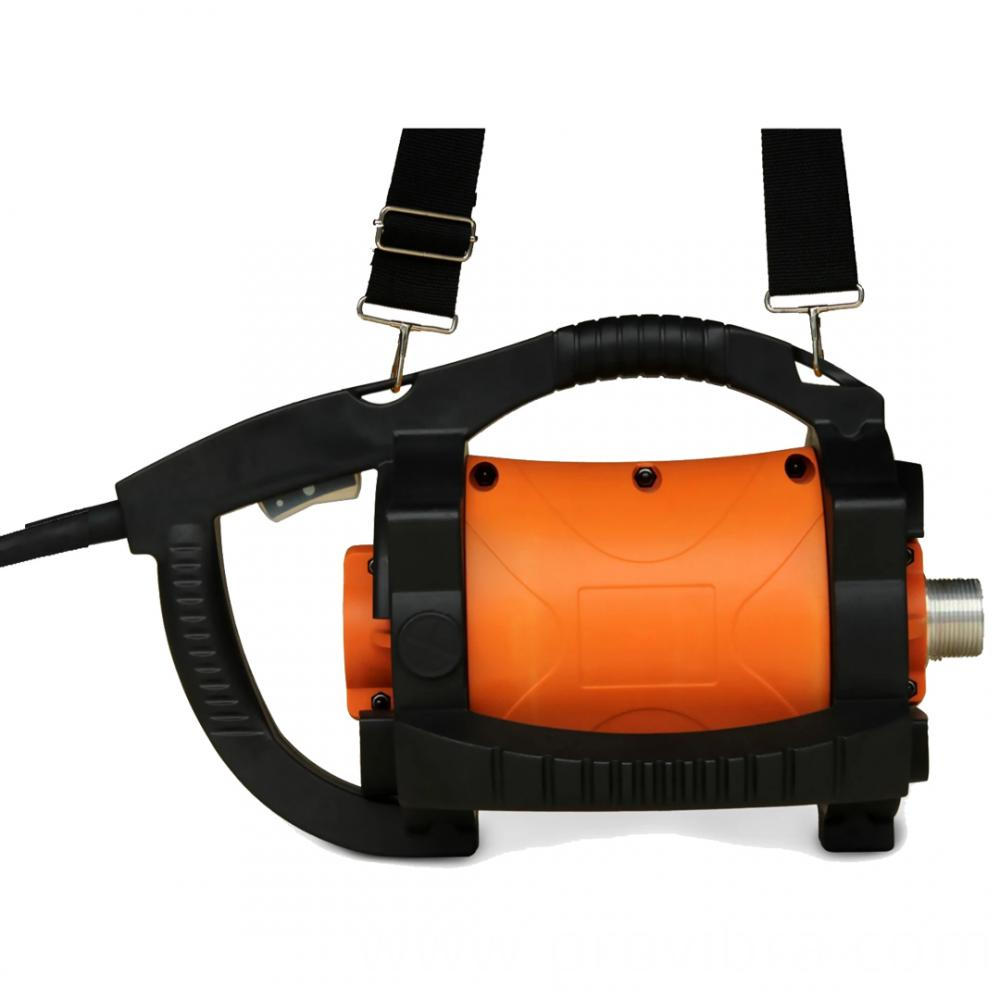

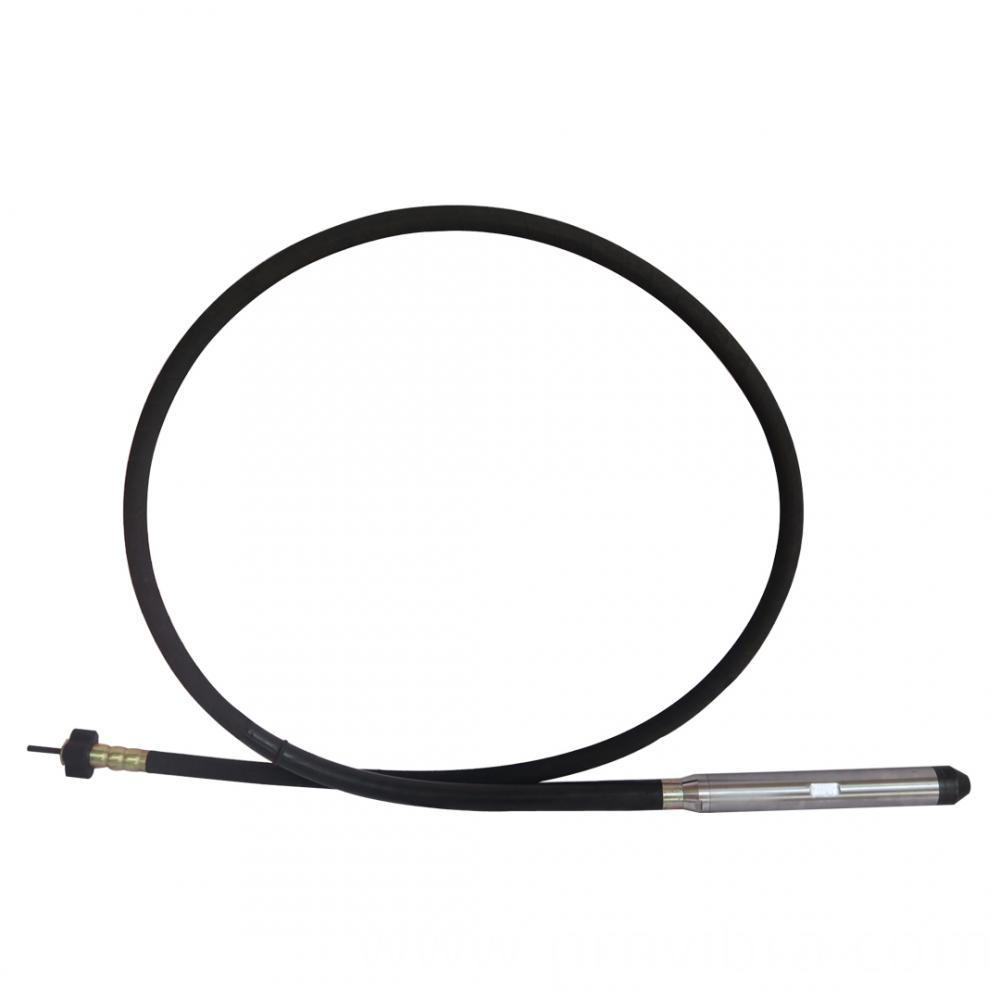

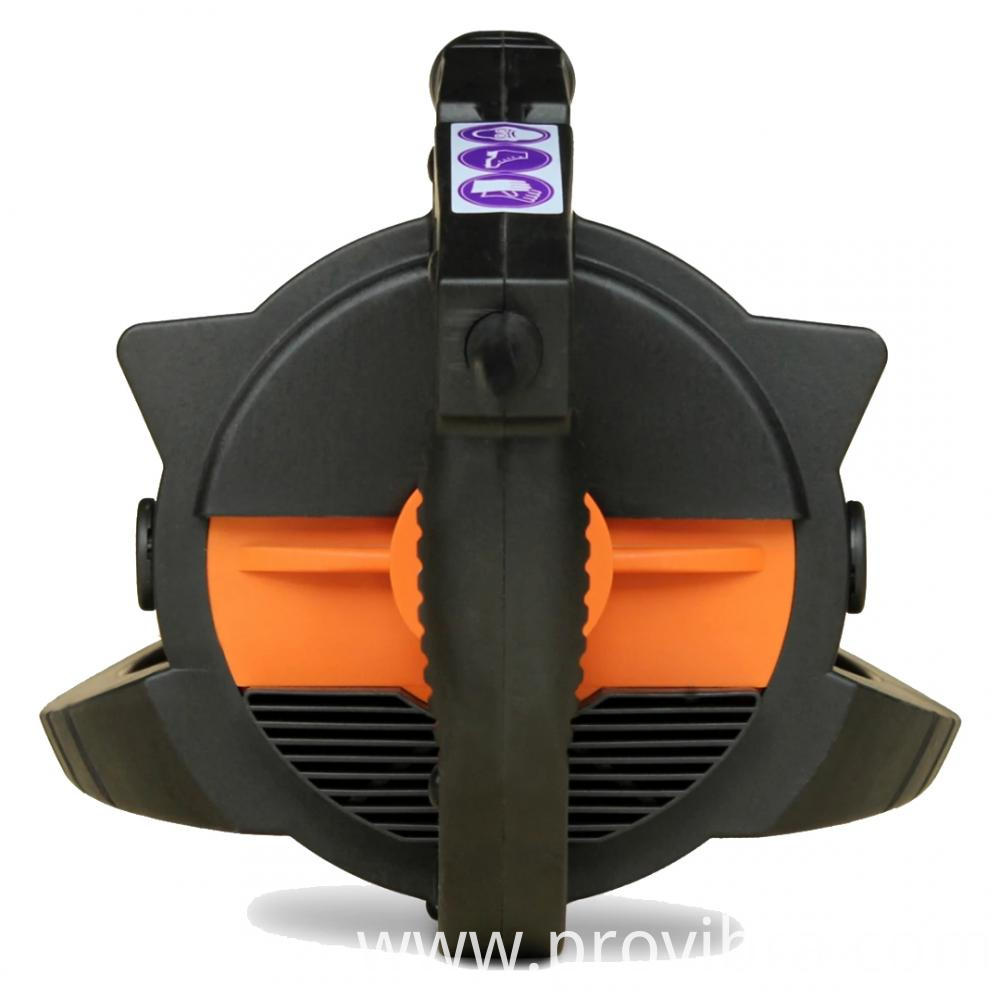

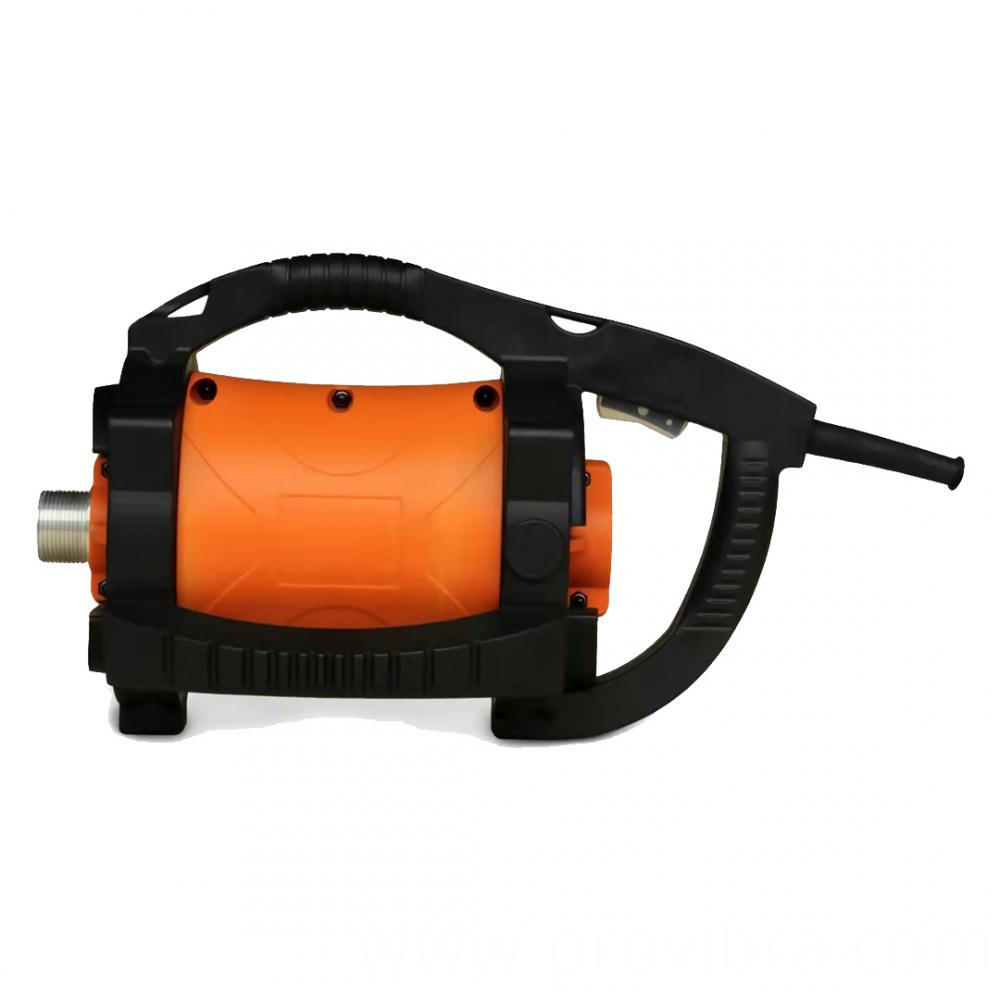

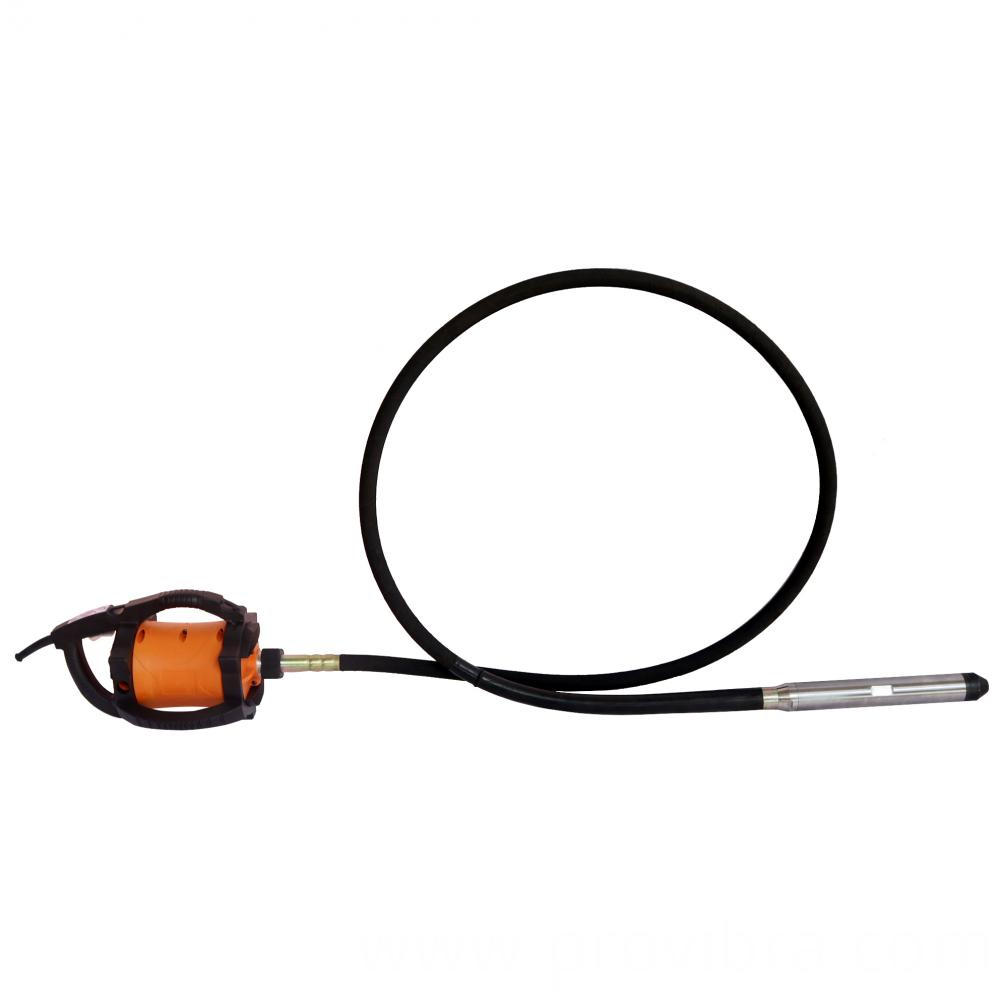

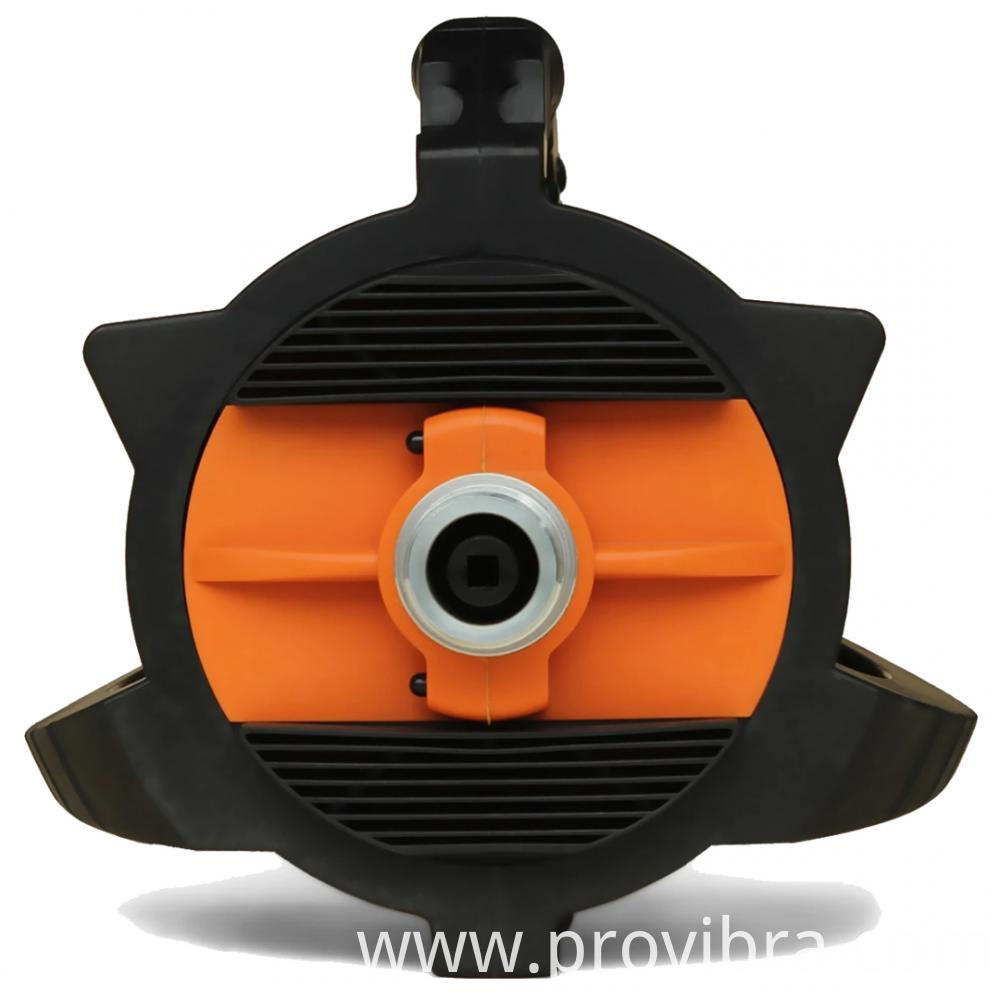

Hb0bc681d8373407d82ccb1a9c2b07c71r JpgInstagram 3 JpgInstagram 4 JpgInstagram 9 JpgInstagram 10 JpgEnar Type Vibrator Hose JpgVibrator Hose Head Jpg
