Model No.: ZNP38
Brand: PROVIB
Applicable Industry: Machinery Repair Shops, Building Material Shops, Construction Works, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Viet Nam
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Not Available
Marketing Type: New Product 2020
Core Component Warranty Period: 3 Months
Core Components: Plc
Old And New: New
Place Of Origin: China
Types Of: Internal
Drive Way: Electric Vibrator
Warranty Period: 1 Year
Unique Selling Point: Low Maintenance Cost
Packaging: carton box
Productivity: 3000pcs/month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 3000pcs/month
Certificate: /
HS Code: 8479909090
Port: Ningbo ,Shanghai,Qingdao
Payment Type: L/C,T/T,D/P,D/A,Western Union,Money Gram
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

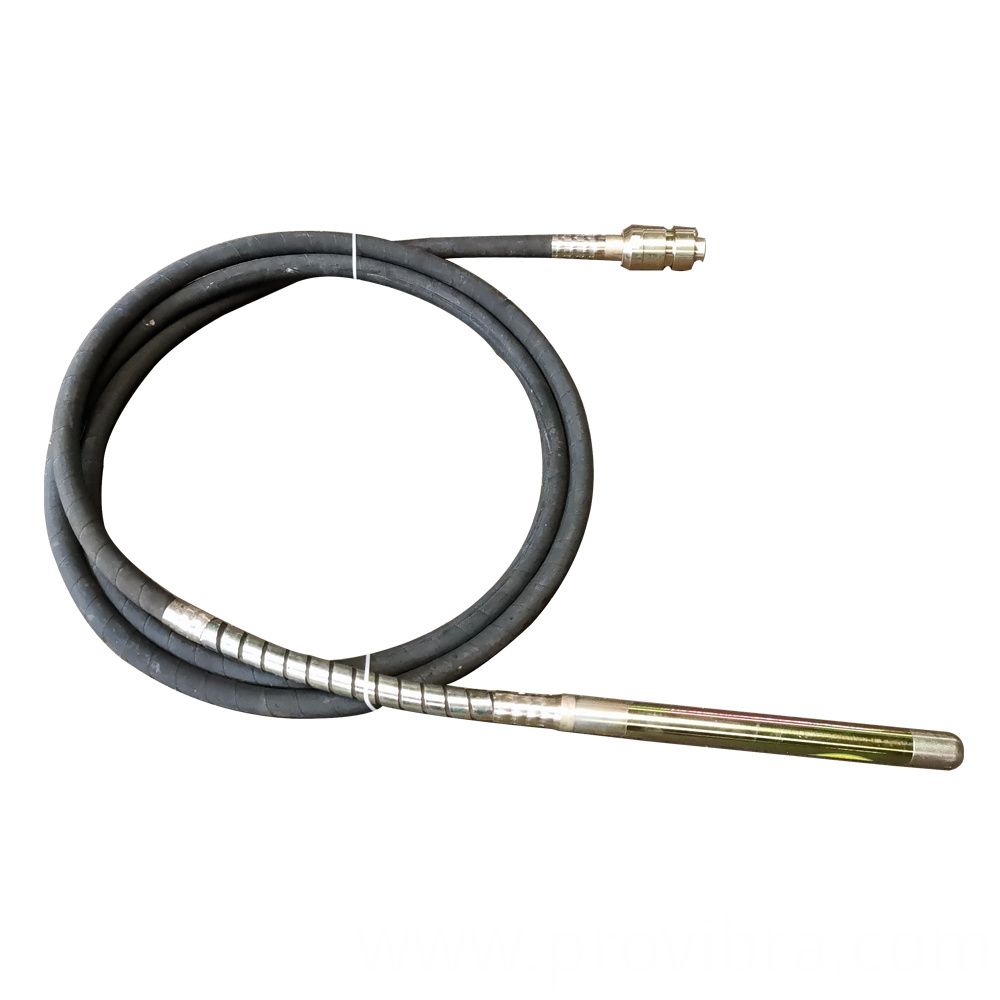

Concrete Vibrator Poker is well known in construction working.Concrete vibrator compacting is the most common method in concrete processing.The direct contact between the vibrating bottle and the concrete mass enables a fast and effective processing of the concrete even in narrow formwork. The dimensions of the concrete body and the density of the reinforcement determine the diameter of the bottle.
The device generates high-frequency vibrations in the vibratiing body.By immersing the vibratiing body in the fresh concrete this is vented and compacted in the effective range of the vibrating body. The fresh concrete simultaneously coolsthe vibrating body.As long as air bubbles rise,the concrete is compacted.

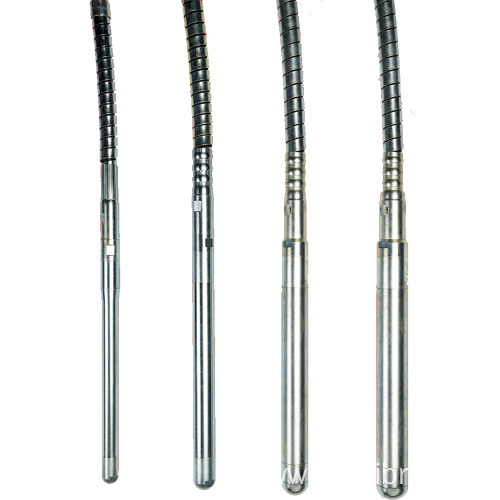

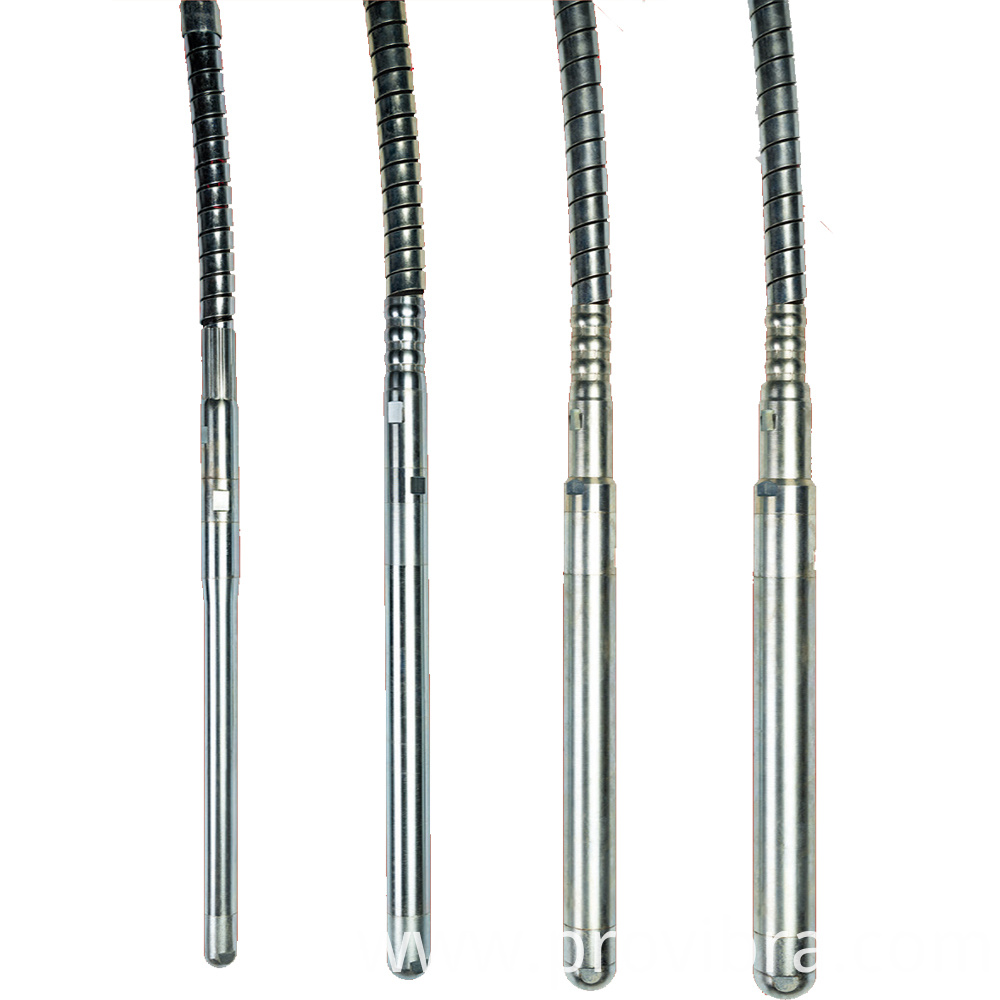

1.Variety sizes of vibrating head,25mm,28mm,32mm,35mm,38mm,45mm,50mm,60mm,70mm,fit for different working conditions
2.Flexible length.our standard length are 4m and 6m,other length can do as requirements,such as 5m,7m,9m,etc.

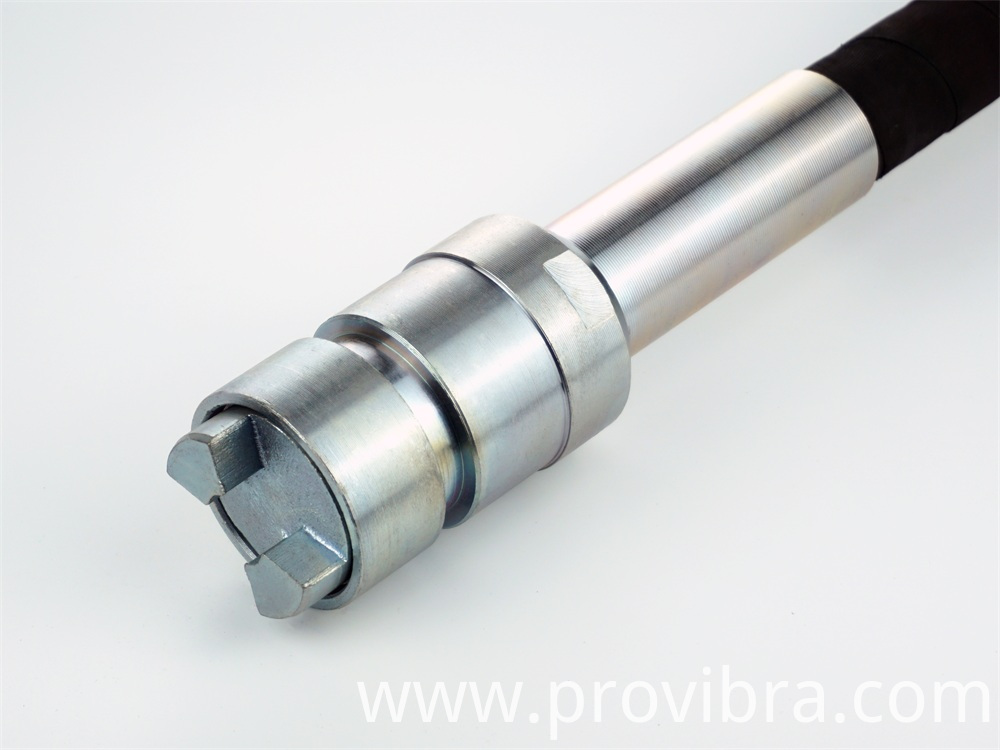

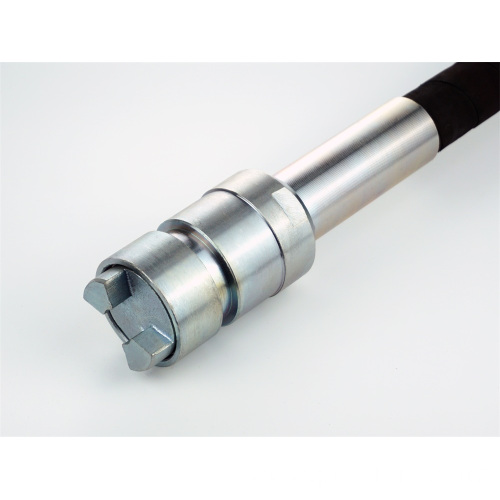

3.Different kinds of couplings, Hexagon,Dynapac( Malaysian/2 claws), Korean,Turkeish,Indian,Austrilian(3 claws),etc. match for different markets
4.Drive units can choose for Electric Concrete Vibrator motor,Gasoline engine concrete vibrator or diesel engine concrete vibrator.
5.Highe quality concrete vibrator,save your cost in maintenance.
6.OEM accepetd,creat values and brand influence.
| model | vibrating head x length mm | flexible shaft dia. mm | rubber hose dia. mm | length m | amplitude mm | vibrating Hz VPM |
| ZPN28 | 28 X520 | 10 | 30 | 4m & 6m | 1.4 | 150-208 （9000-12500） |
| ZPN32 | 32 X520 | 4m & 6m | 1.6 | |||
| ZPN35 | 35 X480 | 1.8 | ||||
| ZPN38 | 38 X590 | |||||
| ZPN45 | 45 X590 | 2.0 | ||||
| ZPN50 | 50 X550 | 12 | 36 | 2.2 | ||
| ZPN60 | 60 X600 | 13 | 2.4 | |||
| ZPN70 | 70 X560 | 2.3 |
Product Categories : Concrete Vibrator > Concrete Vibrator Hose
